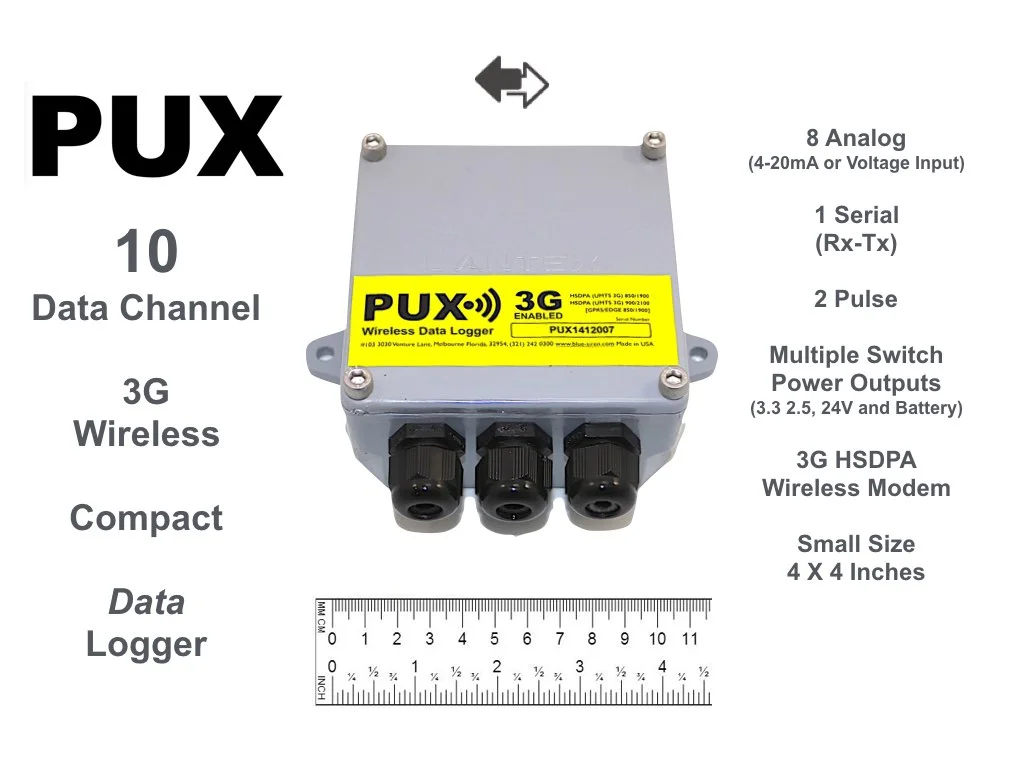

PUX 3G Wireless Data Logger

The PUX Wireless Data Logger is an ultra low power waterproof wireless data logger able of recording multiple channels and relaying back to a secure server hosted either by Blue Siren or the client.

All Blue Siren data loggers come fully encapsulated and maintain IP68 rating. The complete range of Blue Siren equipment is designed to operate in the harshest environments and the most demanding applications. Equipped with Ultra Low Power Technology, this data logger will run for years on a small AA LION Battery or be powered independently onsite.

PUX Standard Inputs Include:

  • 8 x 4-20mA Analogue Inputs
  • 2 - Digital Inputs (I/O)
  • 1 - 0-5 VDC Inputs
  • 3G or 4G Wireless Modem
  • 1 - Switch Power Outputs 2.5V, 3.3V, 5V, 24V, Battery +
  • 1 - Power Input Port
  • SMA Antenna Connector
  • Internal SIM Connector and Port
