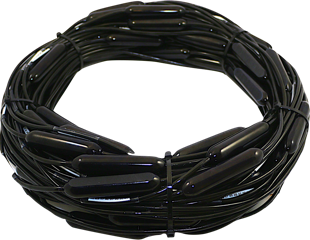

Thermistor String Sensor

The Blue Siren Thermistor String system contains 200 or less digital thermometers that provide a 12-bit Celsius temperature measurement, and has an alarm function with nonvolatile user-programmable upper and lower trigger points.




The system communicates over a 1-Wire bus that by definition requires only one data line (and ground) for communication with a central micro- processor. In addition, the system can derive power directly from the data line (“parasite power”), eliminating the need for an external power supply.

Each sensor has a unique 64-bit serial code, which allows multiple sensors to function on the same 1-Wire bus.

Unique 1-Wire® Interface Requires Only One Port Pin for Communication

Features

  • Measures Temperatures from -55°C to +125°C (-67°F to +257°F)
  • ±0.001°C Accuracy from -10°C to +85°C
  • Interconnectable sensors for extra long monitoring strings.
