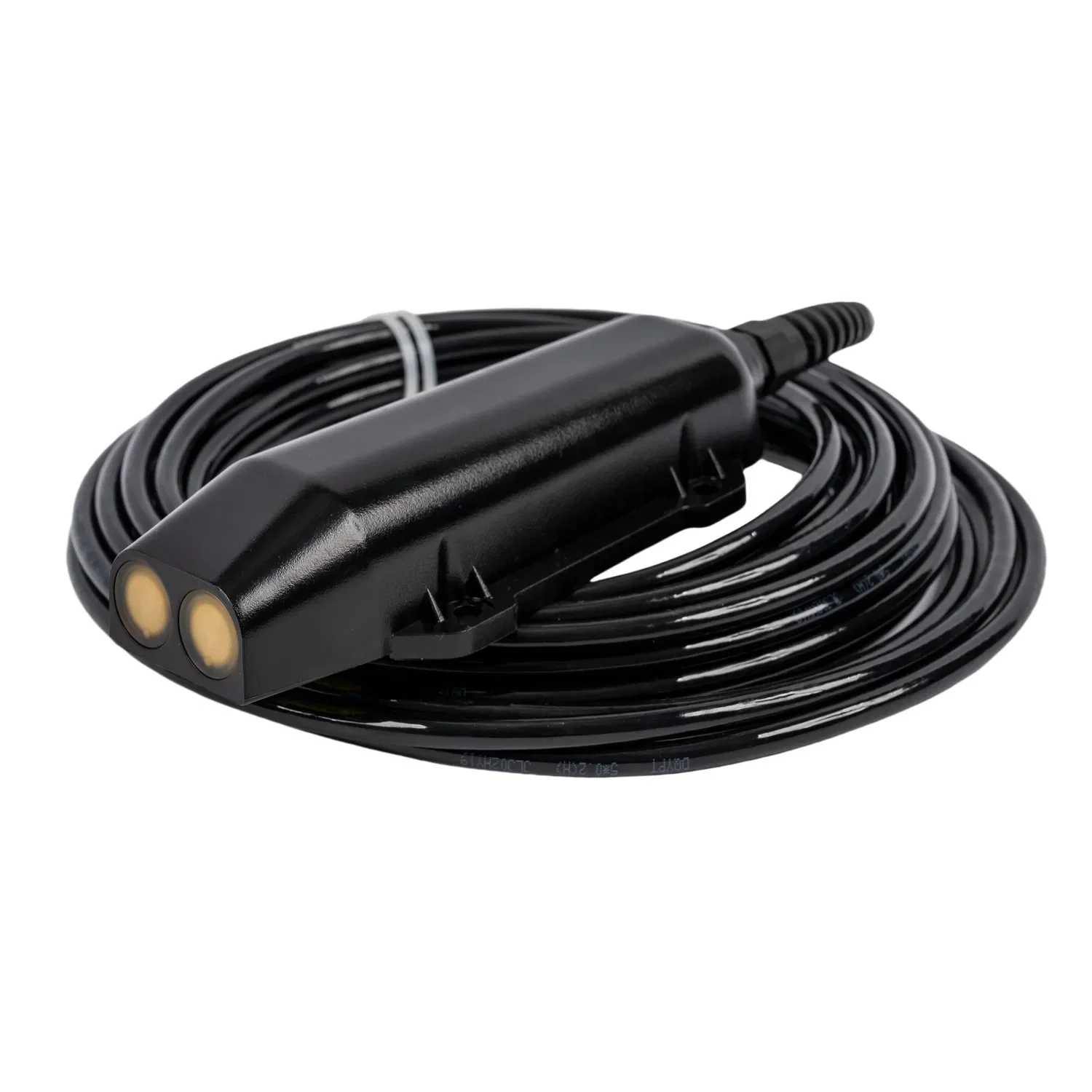

EDS AVFS™

Engineered for Better Hydraulic Decisions

The EDS AVFS™ (Area Velocity Flow Sensor) is an advanced area velocity monitoring solution developed by Environmental Data Services for continuous flow measurement in wastewater, stormwater and environmental applications.

Purpose built for Australia's demanding operating conditions, the AVFS combines high performance ultrasonic Doppler velocity measurement, precision level sensing and intelligent digital signal processing within a compact, fully integrated sensor.

Designed for both temporary and permanent installations, the AVFS delivers reliable hydraulic data that engineers, operators and asset managers can trust when making critical decisions.



Designed for Real World Conditions

Unlike monitoring equipment developed primarily for laboratory environments, the EDS AVFS has been engineered specifically for the challenges encountered in modern water infrastructure, including:

  • Wastewater networks

  • Stormwater systems

  • Open channels

  • Partially filled pipes

  • High suspended solids

  • Sediment transport

  • Debris-prone environments

  • Remote telemetry installations

  • Long-term unattended monitoring

The result is a robust and dependable monitoring platform capable of delivering consistent performance in harsh field conditions.

Optimised 5° Beam Technology

The AVFS utilises a carefully engineered 5-degree Doppler beam geometry, optimised to maximise measurement stability and repeatability.

This design provides excellent performance across both low and high flow conditions while maintaining reliable operation in:

  • Gravity sewers

  • Open channels

  • Partially filled pipelines

  • Environmental monitoring applications

Combined with advanced signal processing algorithms, the AVFS delivers highly repeatable hydraulic measurements across a wide range of operating conditions.

Fully Integrated Architecture

Unlike conventional area velocity systems that require multiple external components, the EDS AVFS integrates sensing technology, processing electronics and communications hardware directly within the sensor body.

This integrated design provides significant operational benefits:

  • Simplified installation

  • Reduced wiring requirements

  • Compact footprint

  • Improved noise immunity

  • Enhanced reliability

  • Lower maintenance requirements

  • Direct RS485 integration

  • Future firmware upgrade capability

The result is a streamlined monitoring solution that is easier to install, maintain and deploy.

More Than Just a Flow Meter

The EDS AVFS has been developed as a complete hydraulic measurement platform, providing access to a wide range of operational and diagnostic data.

Available parameters include:

  • Water Velocity

  • Water Level

  • Instantaneous Flow

  • Average Flow

  • Totalised Flow

  • Wetted Area

  • Water Temperature

  • Signal Strength

  • Signal Quality

  • Raw Velocity Data

  • Diagnostic Information

  • Optional Conductivity Measurement

This comprehensive dataset allows engineers to gain deeper insight into system performance and hydraulic behaviour.

Flexible Monitoring for Any Application

Different projects require different monitoring strategies.

The AVFS supports both instantaneous and averaged measurements, allowing users to optimise performance for applications ranging from detailed hydraulic investigations through to long-term battery-powered telemetry installations.

Supported monitoring options include:

  • Instantaneous Velocity

  • Instantaneous Flow

  • Rolling Average Velocity

  • Rolling Average Flow

  • Configurable Averaging Periods

  • Low-Power Measurement Modes

  • Cumulative Volume Monitoring

Designed to Evolve

The EDS AVFS is a software-enabled platform.

Field upgradeable firmware allows future enhancements and new functionality to be deployed without replacing hardware, protecting your investment and ensuring ongoing performance improvements.

When combined with EMS-Flow™ commissioning and diagnostic software, users benefit from:

  • Guided commissioning

  • Live monitoring

  • Sensor diagnostics

  • Communication logging

  • Calibration tools

  • Pipe profile configuration

  • Firmware management

  • System verification



Key Features

✔ Dual 1 MHz Ultrasonic Doppler Velocity Measurement

✔ Precision Pressure-Based Level Sensing

✔ Fully Integrated Electronics

✔ No Moving Parts

✔ RS485 & Modbus RTU Communications

✔ Real-Time Velocity and Level Monitoring

✔ Totalised Flow Measurement

✔ Optional Conductivity Measurement

✔ Firmware Upgradeable

✔ EMS-Flow™ Software Compatible

✔ Suitable for Wastewater, Stormwater and Environmental Applications

✔ Designed and Supported in Australia




Why Choose the EDS AVFS?

Developed from decades of practical field experience, the EDS AVFS has been engineered to provide reliable hydraulic information in the environments where it matters most. By combining advanced sensing technology, intelligent processing and a rugged integrated design, the AVFS delivers the confidence needed to support critical engineering and operational decisions.
