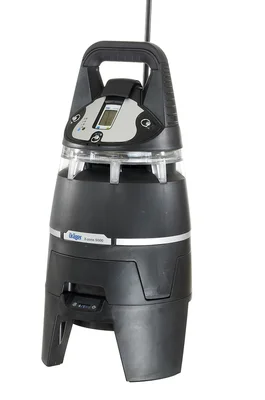

X-zone Com 2.jpg

X-Zone Portable gas detection system

The ORI X-zone Com (complete set) includes the ORI X-zone Device and the Dragger X-zone 5500, in combination with the Dragger 5600 gas detection instruments.

Portable gas detection system for flexible area monitoring with telemetry control. The ORI X-zone Com (complete set) includes the ORI X-zone Device and the Dräger X-zone 5500, in combination with the Dräger 5600 gas detection instruments.

    bc6594cce3_01 (1).jpg

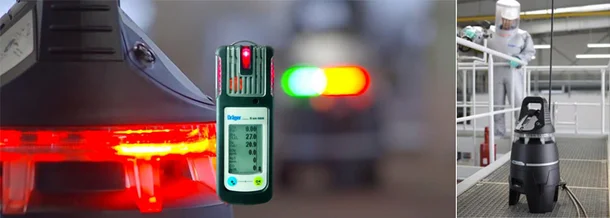

    Even from a distance, the illuminated green LED ring indicates that the air is free of toxic and combustible gases. Upon detection of gas hazards, the LED colour changes from green to red, thus providing a clear visual warning that gas is present. Additionally, a loud and highly audible evacuation alarm is emitted. The X-zone 5500 gas entry is arranged so that the gas can diffuse into the X-am 5600 from all sides.

    Wireless Fence Line with Worldwide Wireless Alarming

    The X-zone Com (Complete Set) can be extended with up to 15pcs of X-zone 5500. Every X zone 5500 has an integrated radio module and can be automatically interconnected to each other to build up a wireless fence line.

    This interconnection of the area monitoring devices allows for the fast securing of larger areas, e.g. pipelines or industrial tanks – even within the scope of industrial shutdowns. If an X-zone 5500 unit detects a gas alarm, the alarm signal is transmitted to all interconnected units immediately. Every connected daughter unit shows with red/green flashing LED the alarms in contrast to the red flashing master alarm. This allows a simple recognition of alarm status and the actual location of the hazard.

    All maximum gas concentration values of the whole wireless fence line are transmitted to the ORI X-zone Com device. The Device is logging all these data and sent them out, together with the GPS Position, via email or directly to the ORI Mcloud. The alarms could also be sent out via GSM Message directly to your mobile phone. You can also set an evacuation alarm by sending a GSM message to the ORI X-zone Com device. So from every location in the world you can be informed and react about the status of your air monitoring.

    Mobile or Stationary Use


    The ORI X-zone Com (complete set) is basically designed as a gas area monitoring equipment for temporarily use. The integrated rechargeable battery allows the use of the mobile unit without any additional external power supply for several days.

    Outside the hazardous explosive gas atmospheres it can be also powered over an external power supply and it can be used as a long term stationary gas area monitoring device with integrated alarm light and horn. Also within hazardous areas the X-zone Com Device battery can be charged with the corresponding Ex charger.

    This allows continuous operation of the X-zone Com, even in explosive atmospheres. If two X-zone 5500 units alternately connected with the X-zone Com, a stationary solution is created. The unconnected X-zone 5500 will be charged outside the hazardous area.

    Powerful Sensors with Flexible Swap and Change Modules

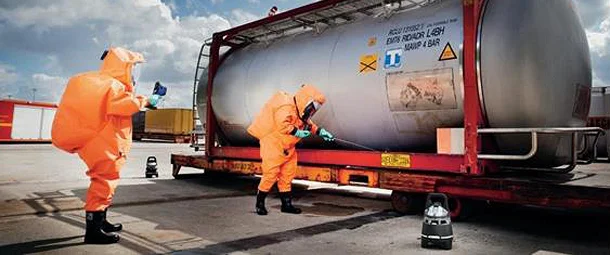

    Messaufgaben_02 (1).jpg

    Up to 6 gas sensors reliably measures combustible gases and vapours as well as O 2 and harmful concentrations of O 3, Cl2 , CO, CO H2 - CP, CO 2, H2, H2S, HCN, NH 3 , NO, NO2, PH3 , SO2, COCl 2, organic vapours, Odorant and Amine.

    It is easy to exchange, upgrade or calibrate the sensors to other gases. The ability to customize the integrated X-am 5600 sensors makes a lot of different applications possible. It also provides dependable warnings in the event of explosive atmospheres thanks to the high level of sensitivity of the innovative catalytic Ex sensor. It not only responds quickly to explosive gases and combustible organic vapours, but is also highly resistant against sensor poisons such as silicone and hydrogen sulphide.

    In combination with its long term stability this offers an extraordinary long expected sensor lifetime of more than 4 years. This will reduce your operational costs. One ORI X-zone Com Device can be connected to 15 different X-Zone 5500 systems, so in total over 12 different sensor parameters can be detected and transferred wireless to different receivers.

    Area Monitoring

    Pumpenfunktion_01 (1).jpg

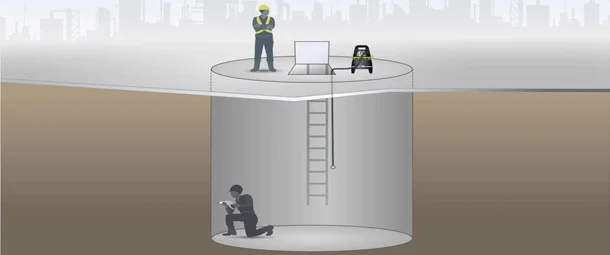

    An optional integrated pump allows for continuous monitoring of areas during pump operation. This provides continuous monitoring of confined spaces and locations which are difficult to access – from a distance of up to 45 m (150 ft).
